ZK6100NGA9

ZK6100NGA9

City buses

  • 10440*2500*3400

    Dimension(mm)

  • 14500

    G.V.W.(kg)

  • 55+1

    Seats

ZK6100NGA9

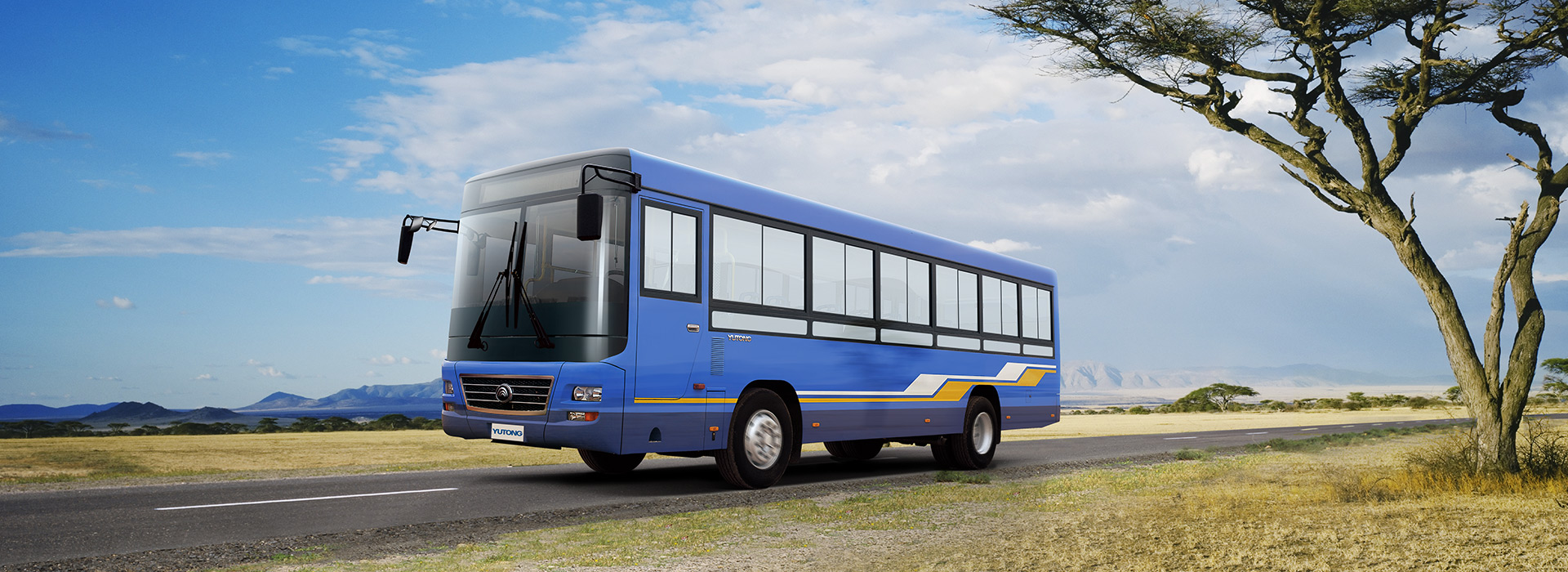

Inheriting the good quality of Yutong products and the commitment to the brand,ZK6100NGA9 is safe, reliable and durable with attractive appearance and comfortable interiors.



The unique tinned copper wires have good antioxidant and flame resistant capability with double service life, effectively reducing the fire risk. The unique AMP waterproof connectors and imported relays enhance the reliability of products.

ZK6100NGA9
ZK6100NGA9


The cathodic electrocoating process improves the anti-corrosion performance of vehicles that reaches two times of that treated by the conventional anti-corrosion process.

Bus parameters
ZK6100NGA9

Basic parameters

  • Engine modelEQB210 20
  • Dimension(mm)10440*2500*3400
  • G.V.W.(kg)14500
  • Luggage compartment(M3)——
  • Max. speed(km/h)90

Chassis

  • Chassis manufacturerZhengzhou Yutong Bus Co., Ltd
  • ClutchOuter diameter of friction lining 395, hydraulic remote control with air assistance
  • Gearbox6-speed manual gearbox optional: 5-speed manual gearbox
  • Brake systemDual circuit pneumatic service brake, energy storage spring parking brake, automatic clearance adjusting arm
  • Suspension systemLeaf spring
  • Fuel tank (L)200

Body

  • Seats55+1
  • InteriorsNon-independent roof-mounted A/C (28000kcal/h)
  • Air conditioner (A/C)No A/C option: A/C (cooling capacity 28000kcal/h)
  • Heating systemNone
  • Audio & video systemMP3 player
  • Other facilitiesWindshield wiper
