ZK6122HE9

Coaches

  • 11600*2500*3600

    Dimension(mm)

  • 17750

    G.V.W.(kg)

  • 49+1+1

    Seats

ZK6122HE9

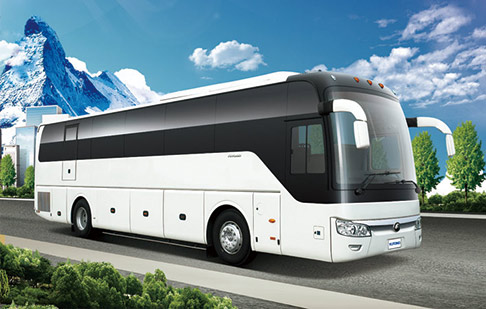

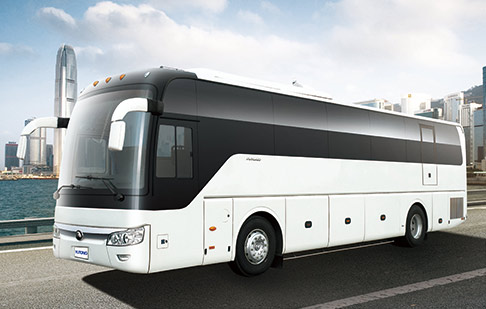

Striking Appearance



Eye catching appearanc with relaxing ergonomic seats and large windows enables you to fully enjoy the comfort and scenery along your journey 1.High-position brake lamps 2.Cleverly hidden side window pillars harmoniously complement the Z-form exterior lines 3.Metal textured Yutong logo is a sign of quality 4.Innovative and appealing headlight design.

Luaggage Compartment



The newly upgraded luggage compartment now has a volume of up to 12.5cubic meters without increasing the dimensions of the whole vehicle and interior space has been optimized allowing for the maximum amount of space due to the layout of seats,luggage rack and so on,ensuring your comfort and convenience..

ZK6122HE9
  • ZK6122HE9

Upgraded Space Superior Comfort

Driver seat Six-direction adjustable seat with high level of comfort alleviates the driver's fatigue,thus ensuring a safer drive.2. Passenger seat:The gap between seats is not less than 300mm,thus ensuring a comfortable ride for your passengers. 3.With a powerful air conditioner,the interior temperature of the vehicle can be reduced to 20 centigrade degree within a shot time,enabling you to enjoy a cool and comfortable trip

ZK6122HE9ZK6122HE9
Bus parameters
ZK6122HE9

Basic parameters

  • Engine modelISL8.9E5 320/ISL8.9E5 36
  • Dimension(mm)11600*2500*3600
  • G.V.W.(kg)17750
  • Luggage compartment(M3)8.5~9.5
  • Max. speed(km/h)120

Chassis

  • Chassis manufacturerZhengzhou Yutong Bus Co., Ltd
  • ClutchOuter diameter of friction lining 430, hydraulic remote control with air assistance
  • Gearbox6-speed manual gearbox optional: AT
  • Brake systemDual circuit pneumatic brake, energy storage spring parking brake, ABS, retarder
  • Suspension systemAir suspension, bidirectional telescopic shock absorber
  • Tire295/80R22.5
  • Fuel tank (L)410
  • LHD/RHDLHD/RHD
  • Others-

Body

  • Seats49+1+1
  • InteriorsIntegral air duct, reading lamp, air outlet, curtain
  • Air conditioner (A/C)Non-independent roof-mounted A/C (28000-32000kcal/h)
  • Heating systemNone
  • Audio & video systemDVD player, 19" LCD monitor in the front
  • Service partsElectronic clock, storage case, back guide monitor
  • Other facilitiesWindshield wiper, remote control lock
