ZK6129H

Coaches

  • 11995*2550*3800

    Dimension(mm)

  • 18000

    G.V.W.(kg)

  • 49+1+1

    Seats

ZK6129H

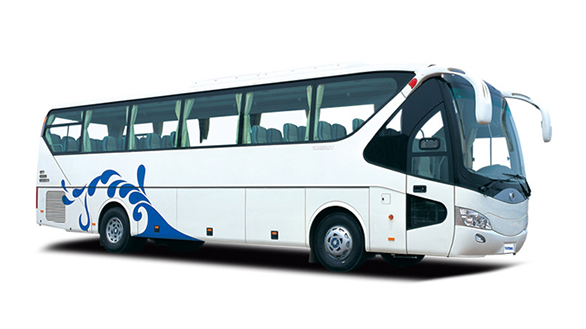

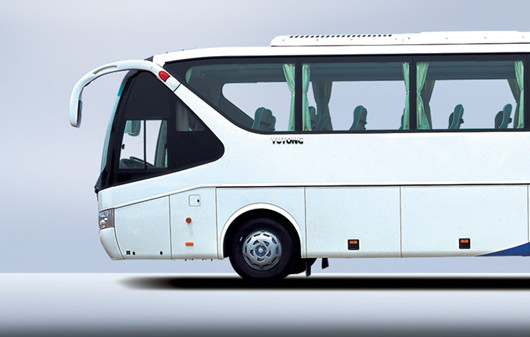

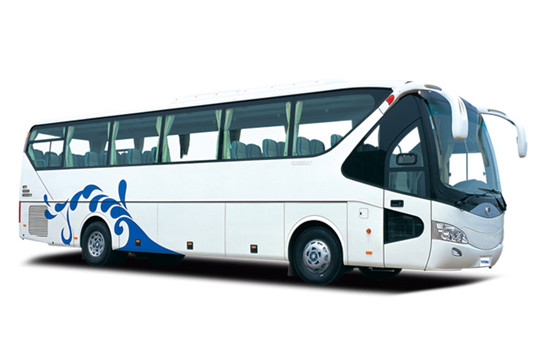

The vehicle features smooth lines and harmonious curvature. The front, rear and side walls are in same style and connect with each other harmoniously. The ultra large front windshield, front wall, as well as service doors and windows on side walls, joint with each other smoothly, enhancing the aesthetics of the vehicle. The design of rear lights is fine and dynamic, and achieves a natural connection with side walls.

Reliable and durable framework



With the research achievement of the project “finite element analysis of bus skeleton” which is in the leading position of China’s bus industry and conducted by Yutong postdoctoral workstation, the structure of the bus skeleton has gone through careful calculation, analysis and testing. Therefore, the bus skeleton has rational structure, effectively improving the strength and rigidity of the skeleton. The application of three-dimensional digital mockup technology can effectively control the error occurred during the process of product engineering.

ZK6129H
  • ZK6129H

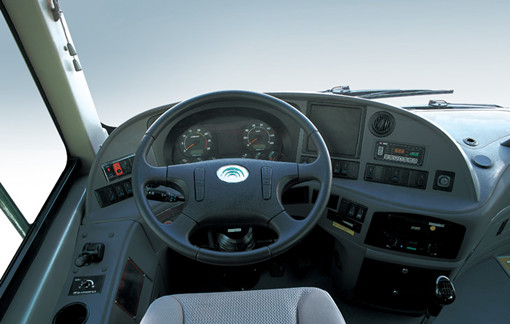

Luxury high back seats with soft and easy to clean leather headrests can be adjusted back-and-forth as well as breadthwise. Newly developed integral dashboard takes both the aesthetics and operational accessibility into consideration. The integral air duct is equipped with specially designed air outlet which has a self-checking function, thus facilitating the supervision of the working condition of the air conditioner.

ZK6129HZK6129H
Bus parameters
ZK6129H

Basic parameters

  • Engine modelL325 20/WD615.44
  • Dimension(mm)11995*2550*3800
  • G.V.W.(kg)18000
  • Luggage compartment(M3)8-9
  • Max. speed(km/h)120

Chassis

  • Chassis manufacturerZhengzhou Yutong Bus Co., Ltd
  • ClutchOuter diameter of friction lining 430, hydraulic remote control with air assistance
  • Gearbox6-speed manual gearbox
  • Brake systemDual circuit pneumatic brake, energy storage spring parking brake, ABS, retarder
  • Suspension systemLeaf spring, bidirectional telescopic shock absorber
  • Tire295/80R22.5
  • Fuel tank (L)400
  • LHD/RHDLHD
  • Others-

Body

  • Seats49+1+1
  • InteriorsIntegral luggage rack, reading lamp, air outlet, curtain
  • Air conditioner (A/C)Non-independent roof-mounted A/C (32000kcal/h)
  • Heating systemNone
  • Audio & video systemMultiple DVD player, 17" fixed LCD monitor in the front
  • Service partsElectronic clock
  • Other facilitiesWindshield wiper, remote control lock
