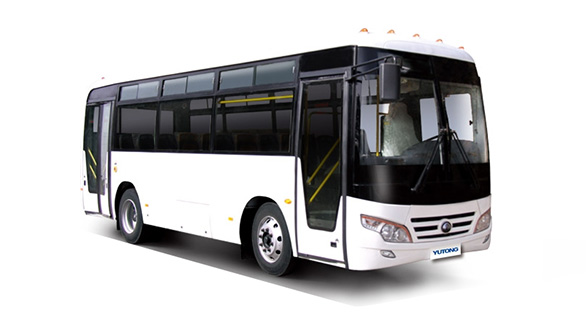

ZK6842DG

City buses

  • 8350*2430*3165

    Dimension(mm)

  • 11200

    G.V.W.(kg)

  • 29+1

    Seats

ZK6842DG

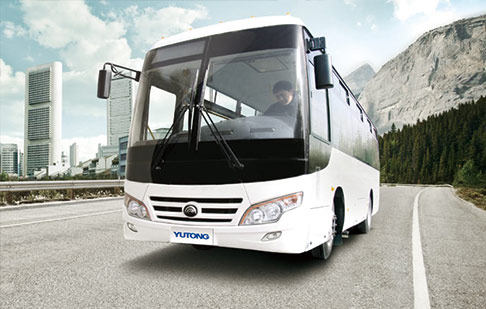

Classic appearance



Simple and smooth lines of the whole vehicle form an aesthetic appearance. White color body with some blue colors on it makes the whole vehicle elegant. In addition, both the exteriors and interiors are also upgraded. Ultra large front windshield ensures the wide visual field and enhances the handling safety of the vehicle.

Upgraded safety



5.5-ton front axle with high loading capacity and good rigidity can reduce the change of camber angle and extend the service life of tires;

Split front windshield saves the maintenance cost;

Sliding side windows and closed side windows meet the different application purposes on vehicles.

ZK6842DG
  • ZK6842DG

Optimized interiors

Optimized design of interior space can carry high up to 58 passengers. Increased headroom of passengers and improved transmission of light provide a better ride comfort for passengers. Good styling of interiors with harmonious colors, accessible handrails, flat floor structure … we ensure your safety in all respects.

ZK6842DGZK6842DG



Bus parameters
ZK6842DG

Basic parameters

  • Engine modelISDe180 30/ISDe180 41/ISDe185 50/YC4G180N-40
  • Dimension(mm)8350*2430*3165
  • G.V.W.(kg)11200
  • Luggage compartment(M3)0-0.5
  • Max. speed(km/h)100

Chassis

  • Chassis manufacturerZhengzhou Yutong Bus Co., Ltd
  • ClutchOuter diameter of friction lining 395, hydraulic remote control with air assistance
  • Gearbox6-speed manual gearbox (optional: AT Euro V)
  • Brake systemDual circuit pneumatic brake, energy storage spring parking brake, ABS, exhaust brake
  • Suspension systemLeaf spring, bidirectional telescopic shock absorber
  • Tire255/70R22.5
  • Fuel tank (L)190/370L(CNG)
  • LHD/RHDLHD
  • Others-

Body

  • Seats29+1
  • InteriorsSplit-type interior luggage rack, curtain
  • Air conditioner (A/C)Kelin roof-mounted A/C (21000kcal/h)
  • Heating systemNon-independent wall-mounted radiator
  • Audio & video systemSD memory card player, microphone, 17" LCD fixed monitor in the front, back guide monitor
  • Service partsNone
  • Other facilitiesWindshield wiper, high-position brake light
