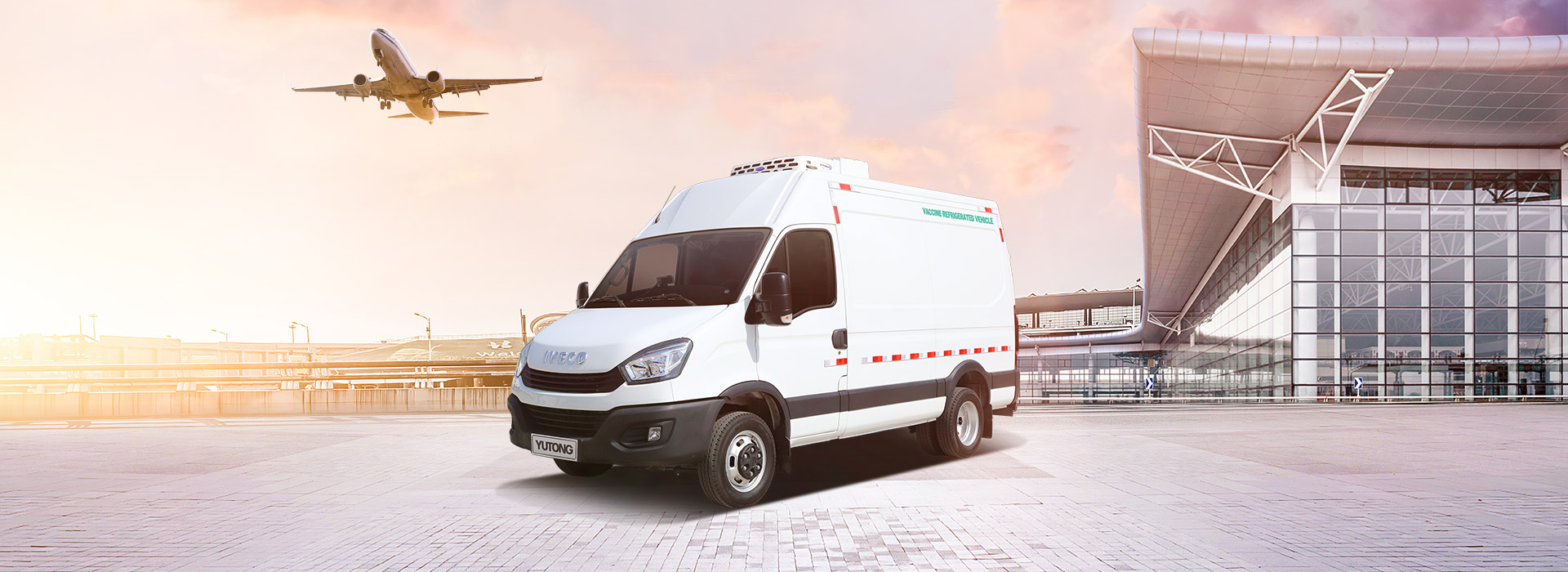

Vaccine Refrigerated Vehicle-ZK5043XLC1

Vaccine Refrigerated Vehicle-ZK5043XLC1

Medical Vehicle

Vaccine Refrigerated Vehicle-ZK5043XLC1

This model is specially developed for "vaccination" stage to ensure cold-chain transportation of vaccines throughout, guaranteeing activity and effect of the vaccine.

Heat insulation performance is good:Adopt high quality polyurethane insulation material Door frame adopts broken cold-bridge structure.


Reliability is high:Adopt full-closed PU plate bonding structure with high strength and non-defrmation; Adopt tinning wire harness whose service life is extended by over 2-3 times than ordinary copper wire.


Intelligence level is high:Temperature and humidity monitoring system is installed in cargo compartment, with over-temperature alarm and other functions; Cloud platform RMS realizes vehicle temperature & humidity data, travel track monitoring and query, etc.

Vaccine Refrigerated Vehicle-ZK5043XLC1
Vaccine Refrigerated Vehicle-ZK5043XLC1

Basic parameters

  • ModelZK5043XLC1
  • Chassis brandIVECO DAILY
  • EnginePower: 107kW; Diesel, China V
  • Overall size (L×W×H)5680*2011*2800mm
  • Maximum speed130km/h
  • Maximum gross weight4200kg


  • Brake systemFront and rear disc brakes, ABS+EBD
  • Compartment volumeOver 7.3m³
  • Compartment interior materialFRP skin
  • Ventilation slotFloor and side wall ventilation slots
  • Refrigeration unitImported Carrier refrigeration unit: refrigerating capacity 3730W at 0℃/30℃, refrigerating capacity 2080W at -20℃/30℃, with emergency power function.Full electric refrigeration unit: refrigerating capacity 1210W at 0℃/30℃, refrigerating capacity 470W at -20℃/30℃
  • Temperature and humidity monitoring systemData printing, remote monitoring, GPS positioning, alarm etc. realized
  • OptionsCurtain and stainless steel plate interiorskin are optional
  • Safety configurationTire pressure alarm, active airbag
  • Power systemLithium battery, 12V, 412Ah, used as emergency power
  • Other featuresReversing camera, central lock
