ZK6752N1

Coaches

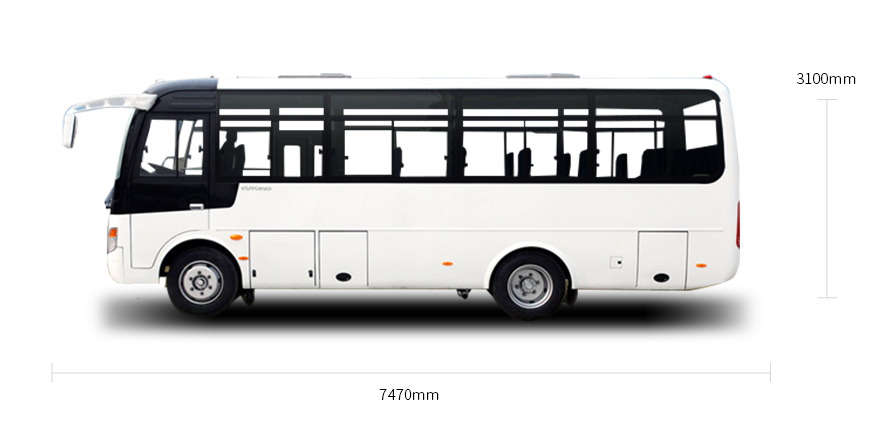

  • 7470*2340*3100

    Dimension(mm)

  • 8600

    G.V.W.(kg)

  • 28+1

    Seats

ZK6752N1

Good-looking appearance with good safety performance



Rear-mounted engine style and front air grille with chrome molded piece are full of aesthetic appeal.

Both the width and height of the vehicle are increased to create a spacious and comfortable environment for passengers.

Air intake of the engine through the side wall adapts to the intake demand under various road conditions.

Ultra large side windows and large curved front windshield offer you a broader vision. New-style rabbit ear shaped rearview mirrors feature wide visual field and no blind spots.

Improving operating income with reliability and durability



Defrosting system with residual heat of engine enables the unimpeded to run  in frosty weather.

Adjustable driver seat is very comfortable.

ZK6752N1
  • ZK6752N1

Harmonious color matching and pleasant trip

Interiors with PVC monolayer leatheroid are easy to clean.
Flat floor structure, as well as front and rear doors, facilitates the passage.
Roof top with molded linen materials is high-end and eco-friendly.
Roof hatch can refresh the air in the passenger compartment as required.
The design of softening dashboard is more humane.

ZK6752N1ZK6752N1



Specification
ZK6752N1

Basic parameters

  • Engine modelYC4D140N-40
  • Dimension(mm)7470*2340*3100
  • G.V.W.(kg)8600
  • Luggage compartment(M3)/
  • Max. speed(km/h)100

Chassis

  • Chassis manufacturerZhengzhou Yutong Bus Co., Ltd
  • ClutchOuter diameter of friction lining 362, hydraulic remote control with air assistance
  • Gearbox6-speed manual gearbox
  • Brake systemDual circuit pneumatic brake, energy storage spring parking brake, ABS
  • Suspension systemLeaf spring, bi-directional telescopic shock absorber
  • Tire245/70R19.5
  • Fuel tank (L)370L gas cylinder
  • LHD/RHDLHD
  • Others-

Body

  • Seats28+1
  • InteriorsSplit-type interior luggage rack, curtain
  • Air conditioner (A/C)Non-independent roof-mounted A/C (16000kcal/h)
  • Heating systemNon-independent wall-mounted radiator
  • Audio & video systemSD memory card player, microphone, 17" fixed LCD monitor in the front, back guide monitor
  • Service partsElectronic clock, electronic destination sign in the front & rear
  • Other facilitiesStop arm
