Elegant Modeling, Cozy Experience

     -
         2023 Busworld Design & Ecology Award
Elegant modeling: Aerodynamic design principles are adopted, the appearance is modern and sporty, and has won the 2023 Busworld Design & Ecology Award.
 -
         Ergonomically Designed Seats
Comfortable riding: The seats are ergonomically designed and tailored for passengers.
 -
         The Intelligent Cockpit
Comfortable driving: a 10.25-inch instrument display + a 12.8-inch central control system, and"one chip and multiple screens" integrated system control technology.

-


         Interior ColorElegant modeling: Aerodynamic design principles are adopted, the appearance is modern and sporty, and has won the 2023 Busworld Design & Ecology Award.
 -


         Driver ZoneComfortable riding: The seats are ergonomically designed and tailored for passengers.
 -


         Passenger ZoneComfortable driving: a 10.25-inch instrument display + a 12.8-inch central control system, and"one chip and multiple screens" integrated system control technology.

-

2023 Busworld Design & Ecology Award
 -

Ergonomically Designed Seats
 -

The Intelligent Cockpit

Stronger Power, Higher Profits

     -
         New Powertrain
DF MX13 engine, high-torque (2500N·m) ZF AT transmission and 520L fuel tank are equipped as standard to meet the operational needs of various scenarios.
 -
         Lower Fuel Consumption
Reduced curb weight, ECAS, electronic fan, Blue-core and other technologies are adopted, eco mode and power mode are developed, achieving an average fuel consumption of 24.5L/100km.
 -
         Stronger Operating Capacity
Enhanced passenger capacity and luggage compartment: Maximum passenger capacity 61 persons and luggage compartment volume 11m³, bringing stronger operating capacity, and greater profit to customers.

-


         Interior ColorDF MX13 engine, high-torque (2500N·m) ZF AT transmission and 520L fuel tank are equipped as standard to meet the operational needs of various scenarios .
 -


         Driver ZoneReduced curb weight, ECAS, electronic fan, Blue-core and other technologies are adopted, eco mode and power mode are developed, achieving an average fuel consumption of 24.5L/100km.
 -


         Passenger ZoneEnhanced passenger capacity and luggage compartment: Maximum passenger capacity 61 persons and luggage compartment volume 11m³, bringing stronger operating capacity, and greater profit to customers.

-

New Powertrain
 -

Lower Fuel Consumption
 -

Stronger Operating Capacity

Safe and Worry-free Operation

     -

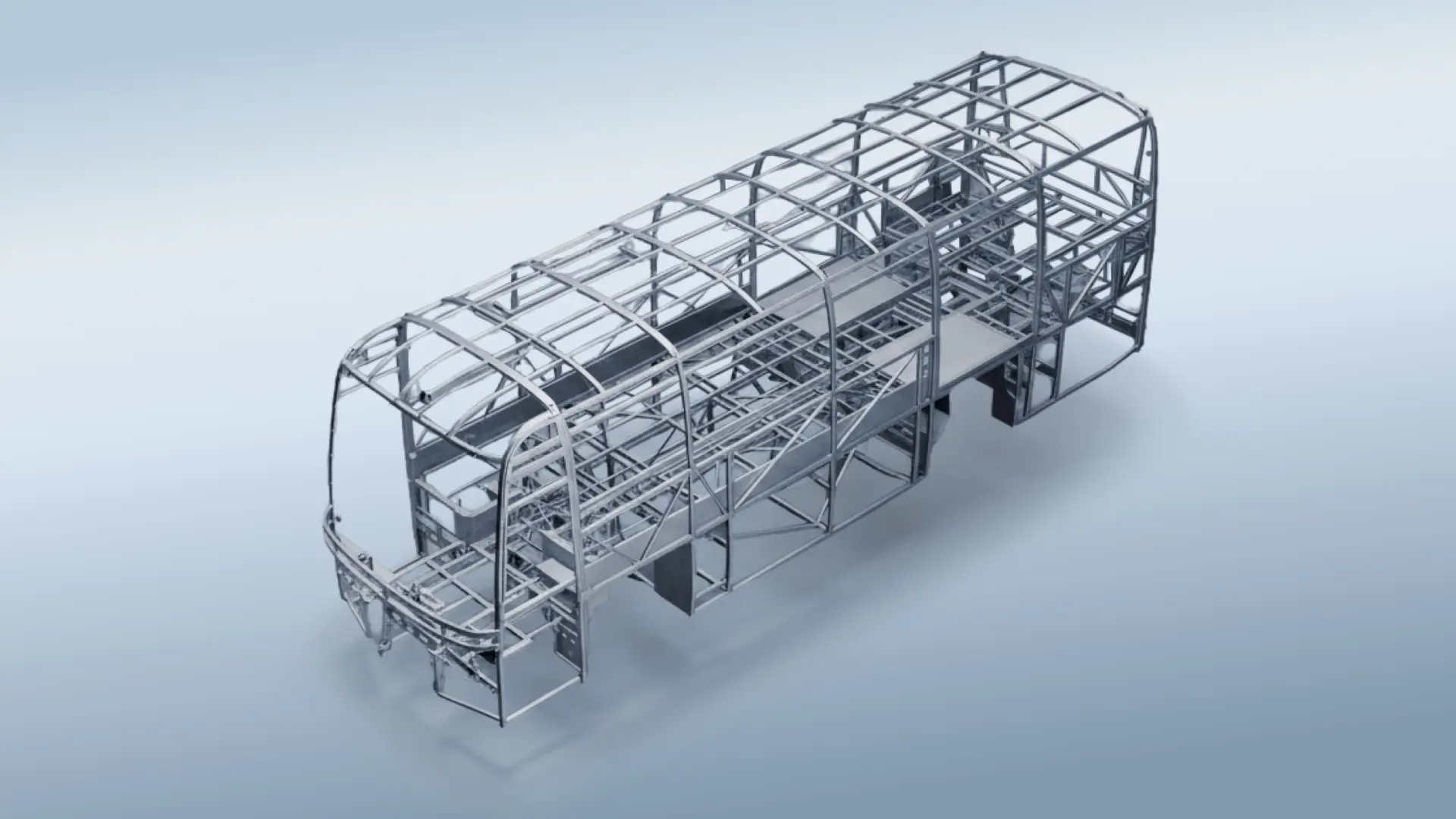

         Steel alloy closed-ring body structure
The vehicle body is made of 700MPa high-strength steel, which is 3 times stronger than ordinary steel to protect passengers' safety to the maximum.
 -
         Intelligent Assisted Driving
GSR auxiliary safety configuration, AEBS, ACC, driver drowsiness and attention warning, electronic parking,, etc. are added to ensure the vehicle active safety.

-


         Interior ColorThe vehicle body is made of 700MPa high-strength steel, which is 3 times stronger than ordinary steel to protect passengers' safety to the maximum.
 -


         Driver ZoneGSR auxiliary safety configuration, AEBS, ACC, driver drowsiness and attention warning, electronic parking,, etc. are added to ensure the vehicle active safety.

-

Steel alloy closed-ring body structure
 -

Intelligent Assisted Driving

Longer Service Life

     -
         Extended Lifespan
Main structure of the vehicle body frame is designed with a lifespan of up to 20 years or 2 million km.
 -
         World leading bus body cathode electrophoresis
With electrophoretic coating, it can withstand salt spray test of over 1000 hours, ensuring no structural corrosion on main structure in 15-20 years.

-


         Interior ColorMain structure of the vehicle body frame is designed with a lifespan of up to 20 years or 2 million km.
 -


         Driver ZoneWith electrophoretic coating, it can withstand salt spray test of over 1000 hours, ensuring no structural corrosion on main structure in 15-20 years.

-

Extended Lifespan
 -

World leading bus body cathode electrophoresis

Atlas
                                Specifications
-

Length * Width * Height (mm)
13970*2550*3865
 -

Seats
57+1+1/61+1+1
 -

Approach Angle/Departure Angle (°)
7°/9°
 -

Brake system
WABCO AEBS+ESC
 -

Length(m)
14
 -

Fuel tank capacity (L)
520
 -

Emission
Euro VI
 -

Minimum turning diameter (m)
≤20
