Basic parameters

• Length (mm)

  13,970

• Width (mm)

  2,550

• Height (mm)

  3,900

• Wheelbase (mm)

  7,100 + 1,515

• Tire

  295/80R22.5

• Maximum speed

  100

• Maximum number of seats

  59

• Maximum luggage compartment capacity (m³)

  8

• Maximum manufacturer's total mass (kg)

  25,500

• Front/middle/rear axle (kg)

  7,500/13,000/7,500

• Floor type

  Concave floor

New energy power system

• Traction battery (kWh)

  621.33/704.17

• Rated power 1(kW)

  430

• Rated power 2 (kW)

  250

• Maximum gradeability 1

  20%

• Maximum gradeability 2

  15%

• Single plug

  ●

• Dual-plug

  ○

• Charging plug current (250A)

  ●

• Charging plug current (500A)

  ○

• Charging plug current (700A)

  ○

• Intelligent power control

  ●

Seat

• Standard passenger seat

  ●

• Comfort passenger seat

  ○

• Three-point passenger seat belt

  ●

• Wheelchair area

  ○

• Yutong standard driver seat

  ●

• Yutong electric driver seat

  ○

• ISRI driver seat

  ○

• Tour guide seat

  ●

Interior

• Soft cloth vertical strip curtain

  ●

• Roller blinds

  ○

• Built-in refrigerator at dashboard

  ●

• Driver area enclosure

  ○

• Wheelchair lifting device

  ○

• Interior luggage rack

  ●

• Toilet

  ●

• Roof hatch

  ●

Exterior

• Passenger door

  1-1

• Hollow side window glass

  ●

• Power driver window

  ●

• Ordinary front windshield glass

  ●

• Electric heating front windshield

  ○

• Luggage compartment upward sliding door

  ●

A/C

• Heating and cooling

  ●

• Heating system

  ●

• Cooling/heating defroster

  ●

Chassis

• Front axle

  ZF RL75E

• Drive axle

  ZF A133

• Third axle

  ZF RL82A

• Air suspension

  ●

• ECAS

  ●

• Steering wheel position

  LHD

• EPB

  ●

Safety and driving assistance system

• Forward Collision Warning (FCW)

  ●

• Lane Departure Warning System (LDWS)

  ●

• Lane Change Assist (LCA)

  ●

• Moving Off Information System (MOIS)

  ●

• Blind Spot Information System (BSIS)

  ●

• Intelligent Speed Assistance (ISA)

  ●

• Driver Drowsiness and Attention Warning (DDAW)

  ●

• Advanced Driver Distraction Warning (ADDW)

  ●

• Advanced Emergency Braking System (AEBS)

  ●

• Adaptive cruise control (ACC)

  ●

• Lane Keeping Assist System (LKAS)

  ○

• Hands-off detection

  ○

• Alcolock

  ●

• Tire Pressure Monitoring System (TPMS)

  ●

• 360° panoramic view system

  ○

• Electronic rearview mirror

  ○

• Reversing radar

  ●

• Intelligent control wiper and headlamp

  ●

Audio-visual entertainment and lighting

• Headlamp, LED

  ●

• On-board Wi-Fi

  ○

• Microphone

  ●

• Intelligent cockpit

  ○

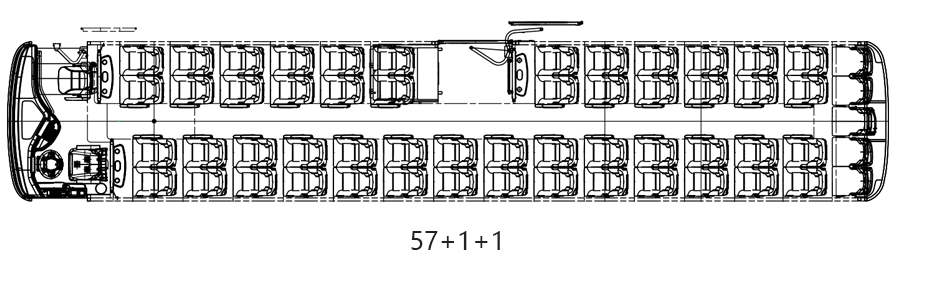

Seat Maps
